BLUETTI PV120 Solar Panel | 120W

Name: BLUETTI PV120 Solar Panel | 120W
Brand: BLUETTI
SKU: PV120-EU-BK-BL-SPFEU
Price: 269.0 EUR
Availability: OutOfStock

The PV350 expected to ship by mid-December.

269,00 €

269,00 € ~~269,00 €~~

Tax included.

Similar model in stock: SP120L >>

Tech Specs

Monocrystalline Solar Cells With Up to 23,4% Efficiency
Long-lasting ETFE Coating

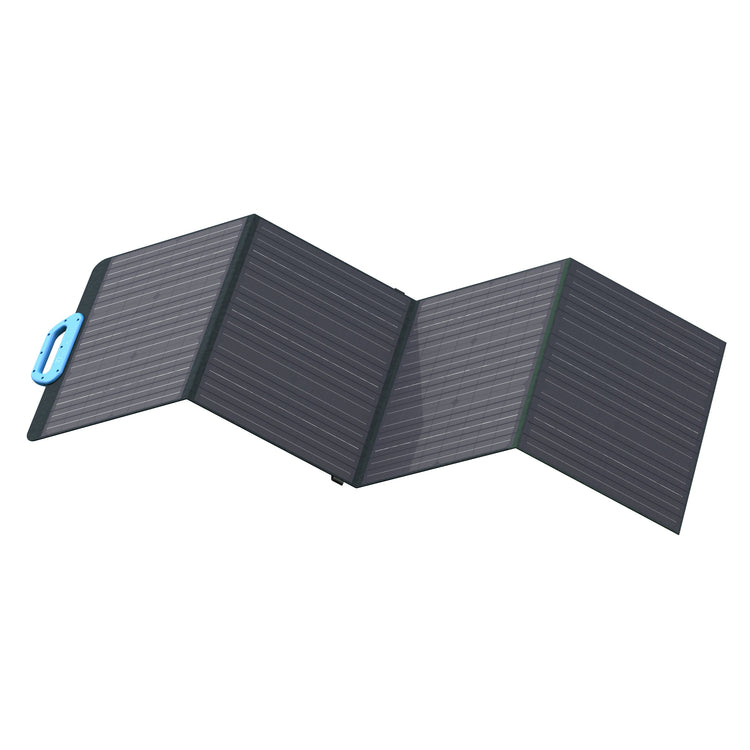

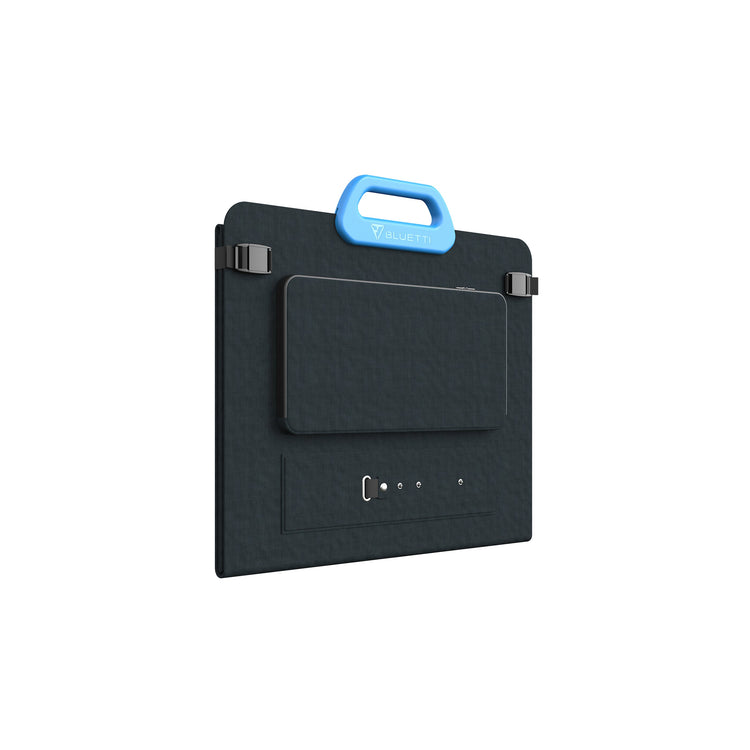

Foldable & Portable
Compatible With Most Solar Generators with MC4 Connectors
12-month Warranty

You can earn BLUETTI BUCKS (Value about €) for completing your purchase！

Product Model:

PV120 Solar Panel | 120W

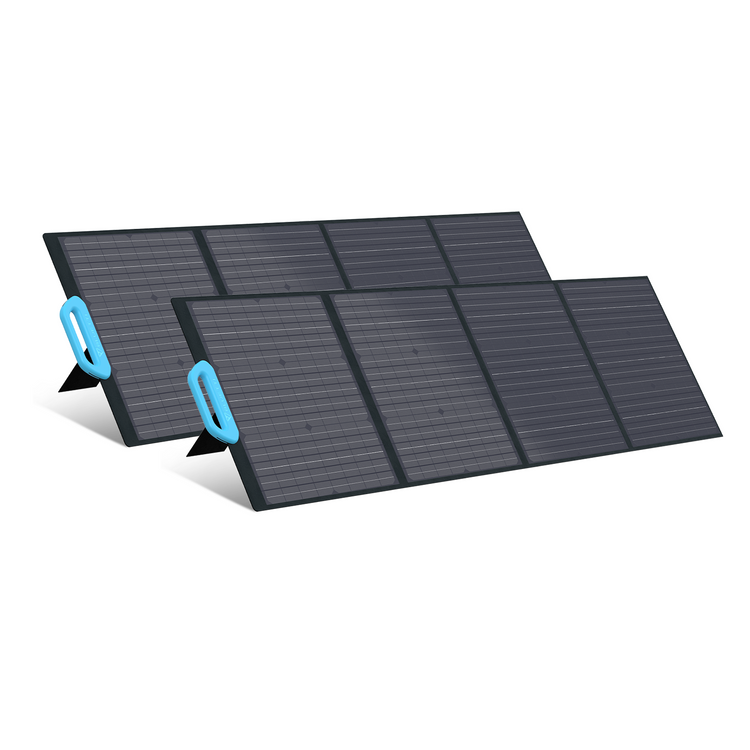

2*PV120 Solar Panels | 240W

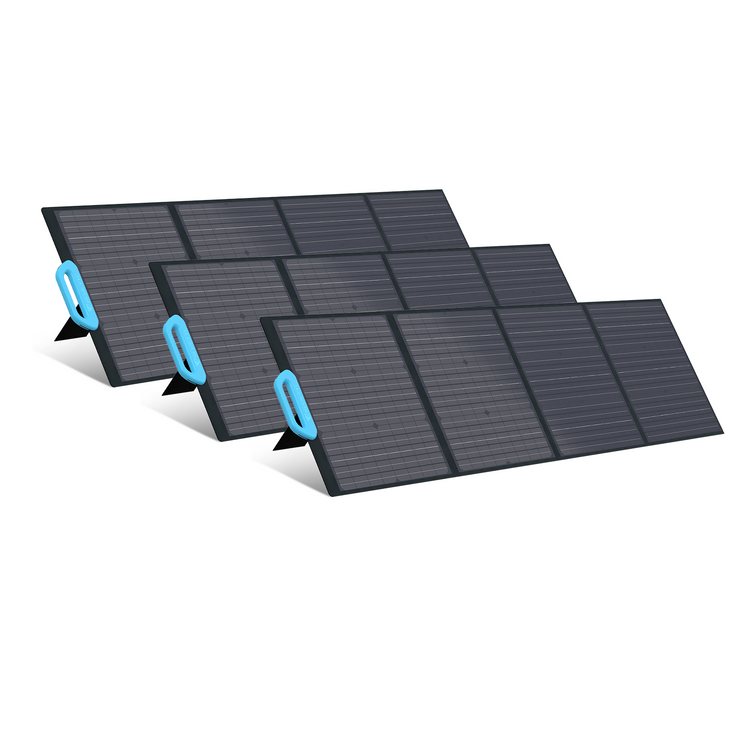

3*PV120 Solar Panels | 360W

Variants:

Quantity:

30 Days Price Match Guarantee

BLUETTI guarantees that we will refund you the difference if you find a lower price from us within 30 days of your purchase.

Free
Local Shipping

1-year Hassle Free
Warranty

Lifetime Customer
Support

Solar Charge Anywhere

Connect it and leave it. BLUETTI 120W solar panel is set to keep your solar generators juiced as long as there is sunlight available.

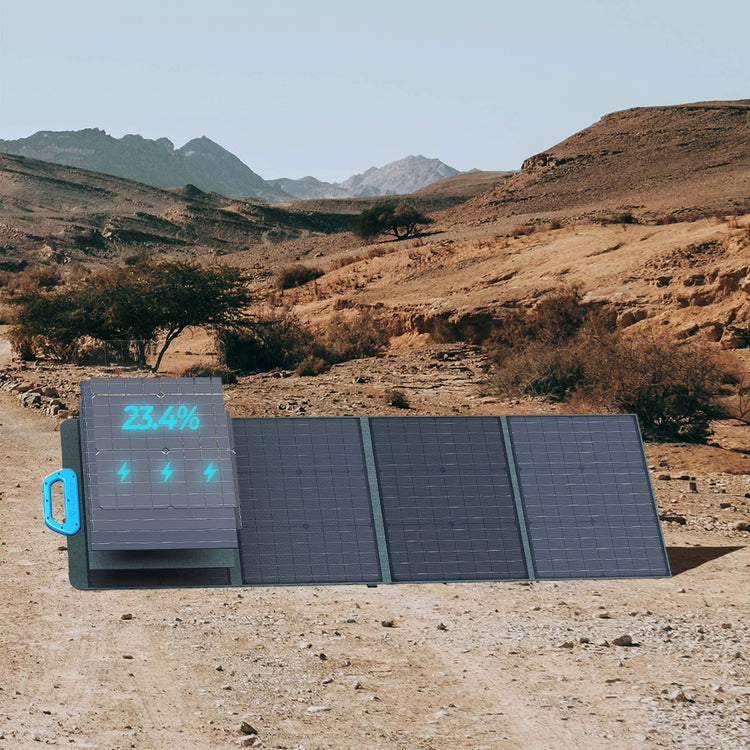

23,4% High Efficiency

Built with monocrystalline solar cells, the PV120 can convert up to 23,4% of sunlight into solar energy, charging your solar generators even in bad weather.

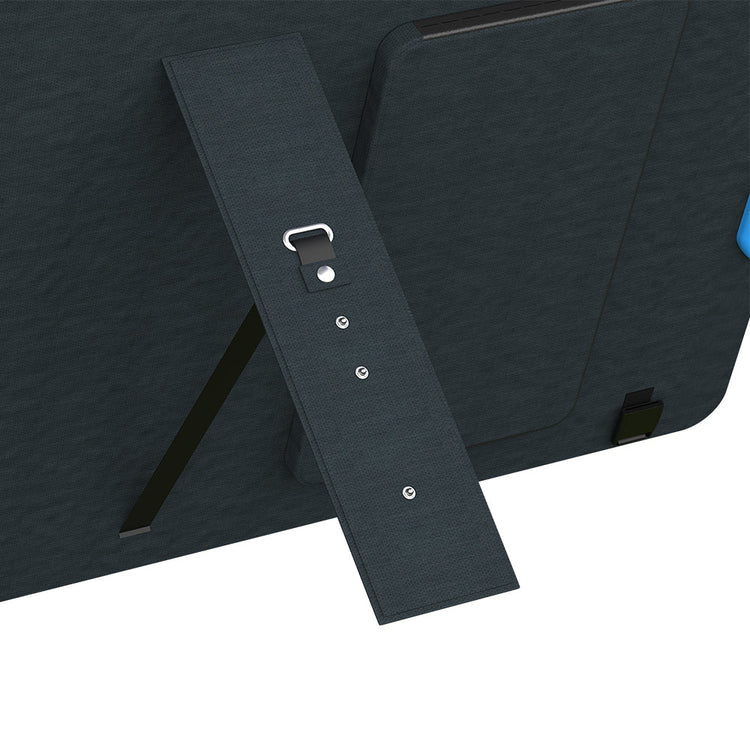

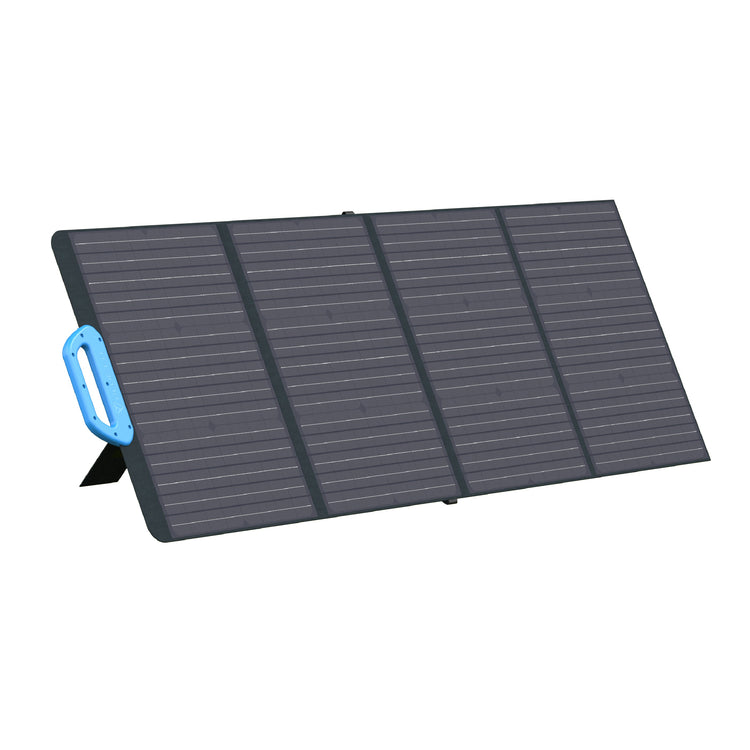

Easy Setup With Kickstand

Unfold the PV120, snap the kickstands, adjust the angle to maximize the amount of sunlight, and you're ready to harness solar energy for your generators.
(The recharging time refers to 80% of power level being charged*)
BLUETTI EB55 (537Wh) + PV120: Charge in as soon as 5 hours
BLUETTI AC200P (2.000Wh) + 2*PV120: Charge in as soon as 8,5 hours
BLUETTI AC200MAX (2.048Wh) + 4*PV120: Charge in as soon as 4,5 hours
BLUETTI AC300 + B300 (3.072Wh) + 8*PV120: Charge in as soon as 3,5 hours
BLUETTI EP500 (5.120Wh) + 6*PV120: Charge in as soon as 7,5 hours

Built to Last

The ETFE coating and IP65 junction box are designed to withstand any scratches and watersplash, perfect for camping, fishing, hiking and much more.(Prevent exposure to rain or no soak in water)

Portable in Every Way

Never Run Out of Power

Suitable for various occasions

Camping with lots of electronic gear.
Camping with lots of electronic gear.

Other Top Rated Products

Specifications

POWER

Model:

PV120

Power:

120W

Lamination:

ETFE (Ethylene tetrafluoroethylene)

Cell Type:

Monocrystalline Silicon

Cell Efficiency:

Up to 23,4%

Voltage at Max Power(Vmp):

19,6V

Current at Max Power(Imp):

6,1A

Open Circuit Voltage(OCV):

24,4V

Short Circuit Current(Isc):

6,43A

GENERAL

Connector:

Standard MC4 Connector

Weight:

12.57lbs (5.7kg)

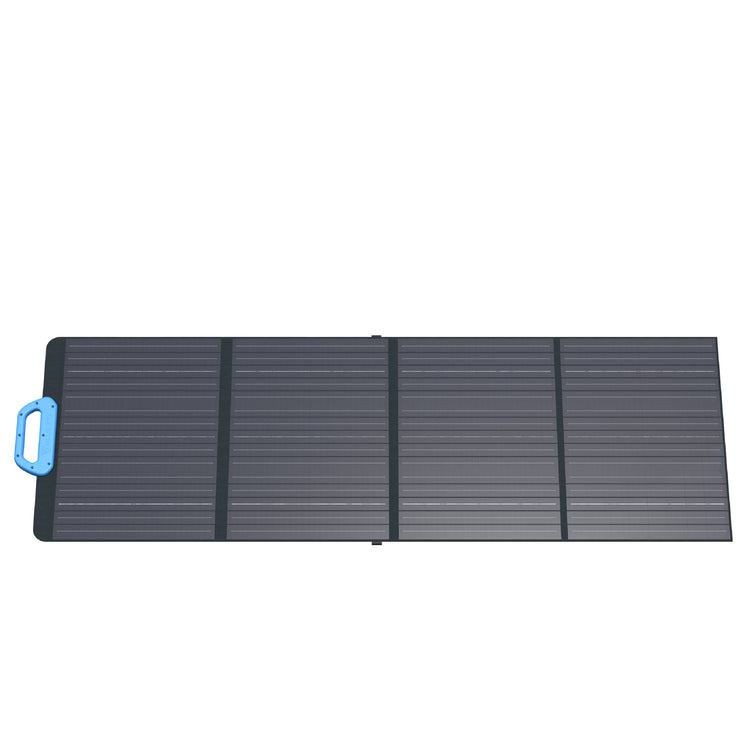

Dimensions (Unfolded):

21 × 65in (53.3 × 165.2cm)

Dimensions (Folded):

21 × 18.5in (53.3 × 47cm)

Operating Temperature:

14-149℉ (-10-65℃)

Best Working Temperature:

77℉ (25℃)

Cable Length:

118in (3m)

Certifications:

FCC, CE, ROHS

Warranty:

12 Months

In The Box

BLUETTI PV120 Solar Panel | 120W MANUAL

Download Now

Works as expected

Tested a few times in the past month. With this solar panel we didn’t have to buy electricity in the camp site. Together with AC50 it works smoothly. Cold beer from the fridge is a prove.

For my CamperVan off-grid system the best flexible solution.

Together with the Bluetti AC180 Power Station i bought 2 Bluetti PV120 Solar Panels. So this is not only for using in my selfbuild Weekender/CamperVan but also it can be used for workspace or kitchen at home. Why did i choose for those PV120 Solar panels? Not only they are small enough for the little space we have in the Van, it gives us more flexability when we are in the woods or out in the fields or lakes. The Van can be parked in the shadow and i can put the 2 PV120 Solarpanels and the AC180 Power Station with the extension cables wherever there is some sun getting trough. With a fixed Solarpanel on the roof the Van has to be parked into the sun. Recently i used this set-up for a few day’s in a private wood campspace, no electricity, but with the ability to have cooled drinks and food thanks to this Bluetti-system. Very pleased with this system and even we were in the wood, the bright sun shining trough the leaves, it was charging with around 150 W whilst it was charging my laptop, so enough to stay 3 to 4 day’s offgrid.

120W solar panels.

Excellent product, charges really well and above all excellent quality...Thanks

Easy to use, charges well

Solar panel is easy to set up, sunlight isnt very strong in my area this time of the year, but the oanel till charged my eb4a pretty fast.
Panel only came with MC4 connector, so you may need to get an adapter

Review PV120 solar panel

I’m very happy with this panel.
I have used it a few times now to recherche the EB3A power station.
The charging power in full sunlight is as advertised.

1 2 3

FAQS

Q1: Is It Waterproof?

A:

Yes. IP65 is rated for junction box. Do not expose the solar panel to rain or snow.
Q2: Can I install it on the roof?

A:

No.
Q3: What is the difference between the PV120 and SP120?

A:

Under the same condition, BLUETTI PV series solar panels produce more power from limited sunlight.*
* Conclusion from BLUETTI Lab, for reference ONLY.
Q4: BLUETTI PV120 compatibility.

A:

Most solar power stations on the market, and one PV120 solar panel is ideal for BLUETTI EB55/EB70/AC50S portable power stations.
Q5: Can I use BLUETTI Solar Panel to charge the third-party power station?

A:

Yes, as long as they
(1) have MC4 connectors;
(2) support the output specifications of BLUETTI solar panels.
Q6: How do I choose solar panels for my solar generator?

A:

Review the PV input requirements of the solar generator.
Review the output specifications of solar panels.
Calculate the total voltage, current, and wattage of solar panels.
Consider the solar input connectors.

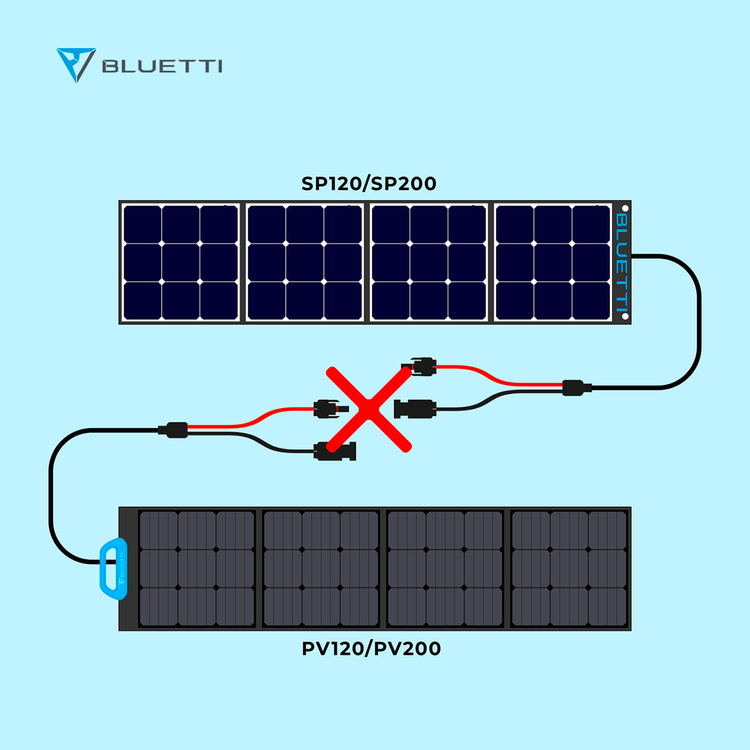

Q7: Can I use different size solar panels?
A:
Q8: Does the panel have any USB ports you can directly plug into?

A:

No. BLUETTI PV120 only has MC4 connectors.
Q9: How do I maximize the efficiency of solar panels?

A:

These steps will help you get the most out of your solar panels:
1. Set up your panels correctly: The orientation as well as the angle it tilts at should be right.
2. Avoid shadow areas: Any amount of shadow will affect solar panel production.
3. Keep your panels clean: Dirt or debris reduces the panel’s efficiency.
4. Don’t get panels too hot: Good air circulation or a cool atmosphere around panels will help.
Q10: Can AC200 MAX be recharged with solar panels and wall outlet simultaneously or dual AC adapters?

A:

YES.
