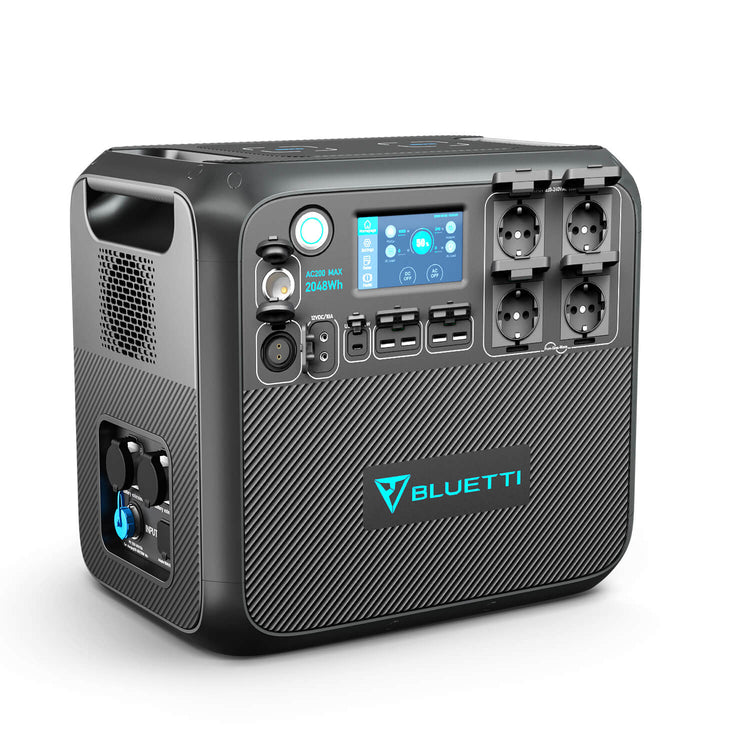

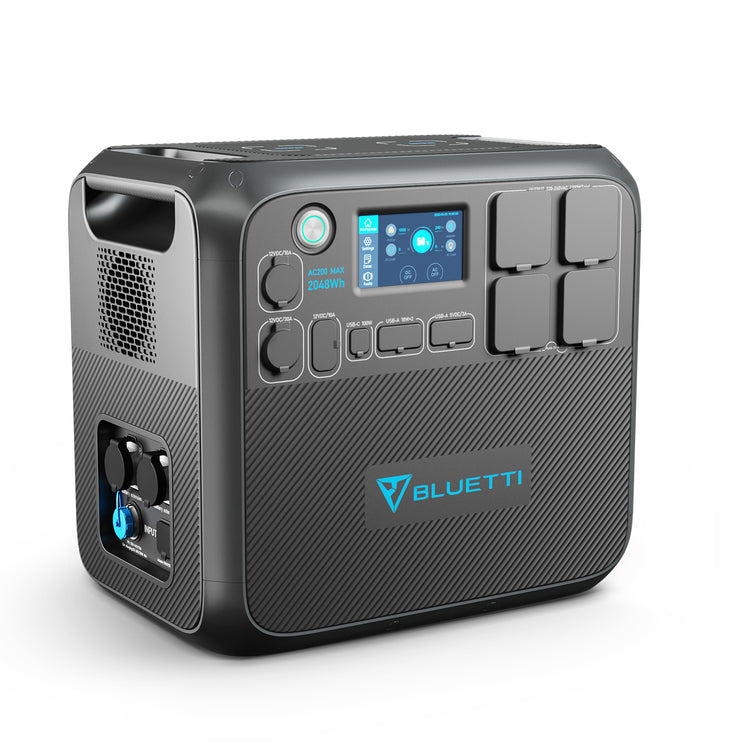

BLUETTI AC200MAX+B230 Home Battery Backup (4096Wh）

FAQS

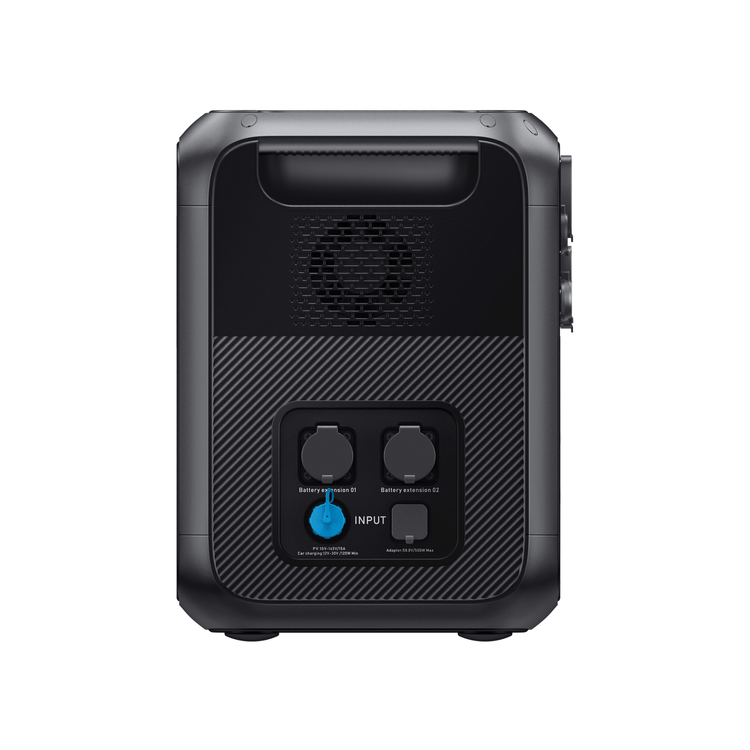

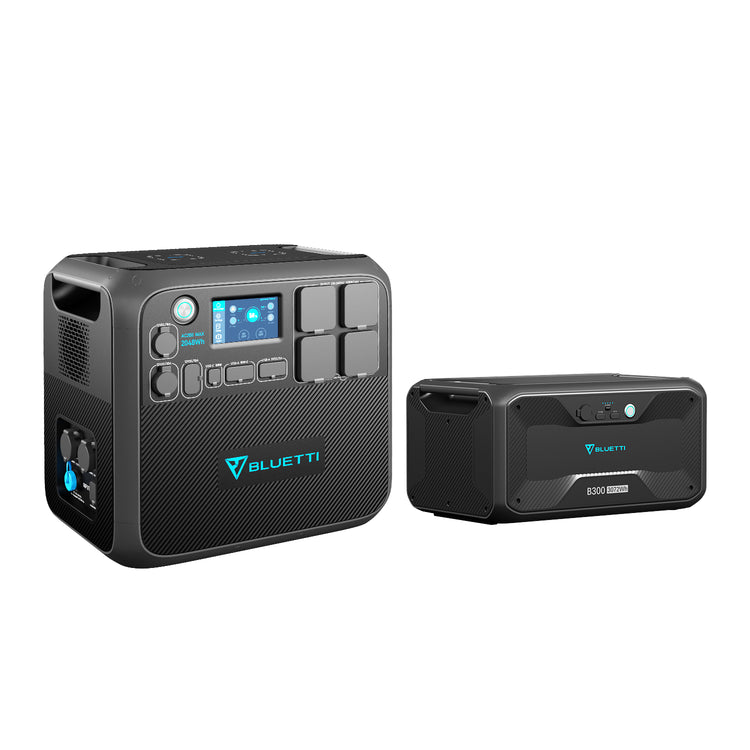

• Q1: How many B230 or B300 battery module can be hooked up with the AC200MAX?

  A:

  Up to two B230 or B300, one via the solar input port by a converter cable, and another one via the AC adapter inlet (Require the BLUETTI D050S - DC charging enhancer, sold separately).

  Friendly Note: which means that if the total power of your devices exceeds 700W.

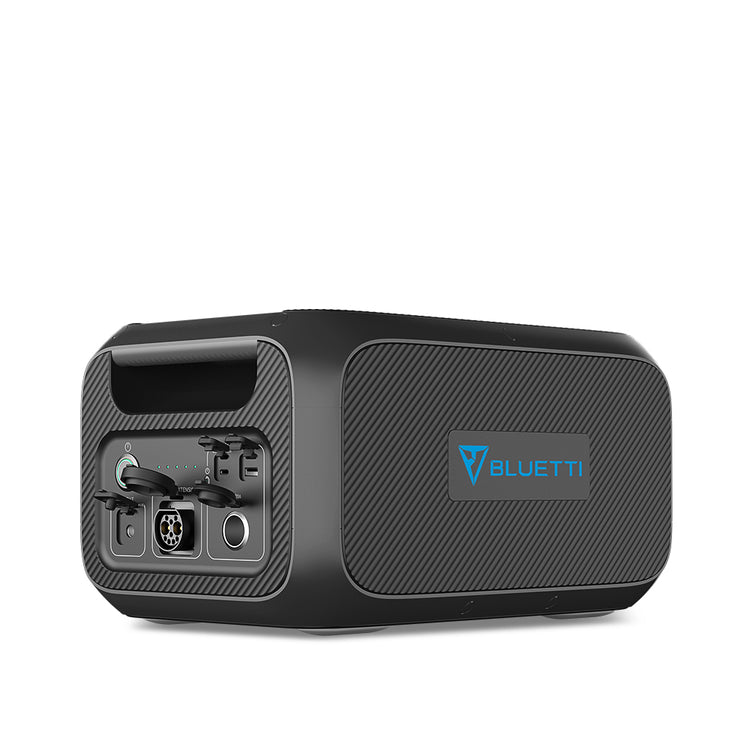

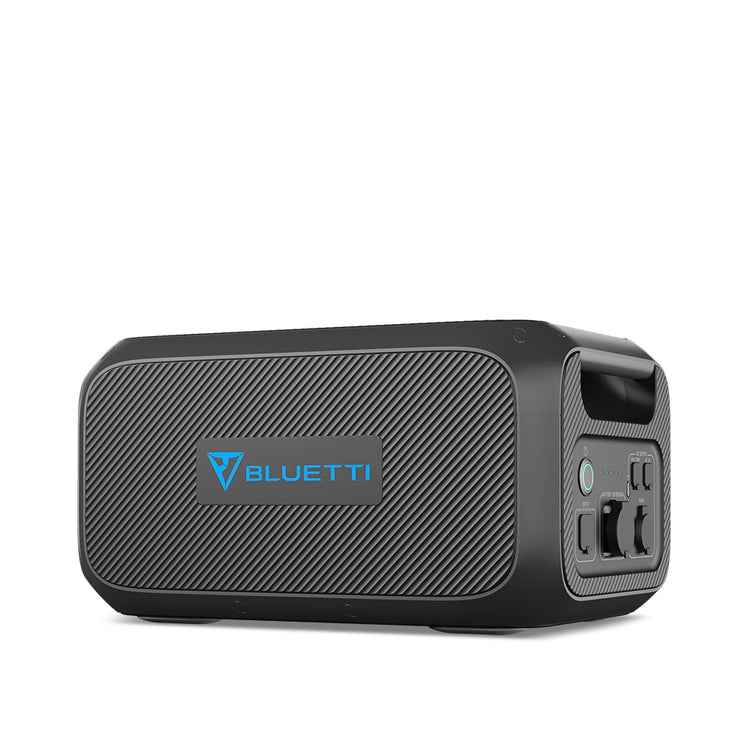

• Q2: Can the B230 battery module be used alone?

  A:

  Yes. B230 has a 100W USB-C, a USB-A and a 12V DC output ports, the battery module can work flawlessly when standalone.

• Q3: What are the charging methods for the BLUETTI B230?

  A:

  B230 can be recharged by:

  1. 500W AC adapter (Sold separately)

  2. Car cigarette lighter output or solar panels (Require the BLUETTI D050S - DC charging enhancer, sold separately).

  Notice: There is only one inlet on the battery module, so it cannot be charged by more than one charge method simultaneously.

• Q4: Does AC200MAX support split phase bonding?

  A:

  No.

• Q5: Can AC200MAX be remotely controlled via APP?

  A:

  You can control the AC200MAX via APP or touchscreen. But APP only can be connected via Bluetooth.

• Q6: What kind of solar panels should l choose for AC200MAX?

  A:

  PV input requirements for AC200MAX:
  Open Circuit Voltage: 10-145V
  Input Power: 900W Max.
  Include MC4 connectors.
  Highly Recommended:
  6x BLUETTI PV120: ≈3,5hrs.
  4x BLUETTI PV200: ≈3hrs.
  2x BLUETTI PV350: ≈3,5hrs.
  * For reference ONLY.

• Q7: What are the charging methods for AC200MAX？

  A:

  • 1. Wall outlet (AC adapter): MAX.500W, fully recharge in 4,6~5,1hrs.
  • 2. Dual AC Adapters: MAX.1000W, fully recharge in 2,5~3,0hrs.
  • 3. Solar Panels: MAX.900W, Open circuit voltage range: 10V~145V; fully recharge in 2,8~3,3hrs. (Doesn’t work with roof solar array with total Voc higher than 145V)
  • 4. Solar Panels & Wall Outlet simultaneously: MAX.1300W (500W from AC adapter, 900W from solar panels), fully recharge in 2~2,5hrs
  • 5. 12V/24V Car Cigarette Lighter
  • 6. 12V/24V lead-acid Battery
  • 7. EV Charging Station (EV adapter sold separately)
  • 8. Generator
  • 9. BLUETTI Wind Turbine (In progress)
• Q8: Does AC200MAX have UPS function？

  A:

  No.

• Q9: How do l know whether my appliance can work well with the AC200MAX?

  A:

  Calculate the total wattage of your devices.
  AC200MAX should work if the load doesn't exceed its rated 2.200W.

• Q10: Is the solar charge controller mode MPPT or PWM?

  A:

  MPPT.

• Q11: Can I use third party solar panel and what conditions need to be met?

  A:

  Yes, you can. The solar array must meet the following conditions:

  1. Total open circuit voltage(Voc) falls in the range of 10-145V/MAX.12A, MC4 connectors

• Q12: How long can it run my device?
  A:

  Running time = Battery capacity × DoD × η ÷ Device rated power DoD refers to Depth of Discharge and η is local inverter efficiency.
  For AC200MAX, both DoD and η are 90%. If you run a 1.000W microwave oven with it, the running time will be:
  2.048Wh × 90% × 90% ÷ 1.000W ≈ 1,65hrs
  Note:
  1) The formula is NOT suitable for inductive loads with compressors, like refrigerator, air conditioner, etc.
  2) The above data is for reference ONLY.
• Q13: What is the maximum input charging power of the BLUETTI AC200MAX?
  A:

  1.300W Max. Via 400W wall socket and 900W solar panels simultaneously.

• Q14: I'd like more tutorial videos on the AC200MAX.
  Sure, please follow BLUETTI Support on YouTube.
